巖芯鉆機類

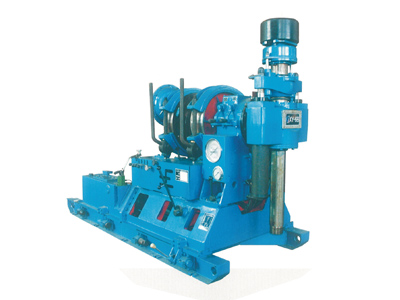

XY-6B巖心鉆機是地質、水文、冶金、煤田、石油和天然氣等資源領域勘探開發的深孔鉆探設備。 該鉆機集中了立軸式液壓鉆機優點，可以進行金剛石小口徑鉆進，也可以進行大口徑鉆進，可垂直鉆孔, 也可以鉆斜孔，是深孔地質勘探鉆孔的理想設備。
XY-6B is deep-hole drill machinery in exploration and development of geology,hydrology,metallurgy.mine, oil.gas etc. The advantage of vertical-style hydraulic drill machinery is suited for drill of small or big diameter with diamond bit for vertical-hole orincline-hole.Lt.s perfect expluratory machinery for deep-hole drill.
主要特點
1、 立軸轉速高，調速范圍廣。
2、 升降機配有水剎車，下降鉆具平穩安全。
3、 油浸濕式離合器，啟動平穩，附有制動裝置。
4、 液壓操作系統預留專用閥口，可供配備擰管機時使用。
5、 鉆機前后移車距離大，方便孔口作業°
6、 立軸通孔直徑大，可滿足多種鉆探工藝要求。
7、 整機重量適中，解體性能好，便于運輸撤遷。
Features
1.Speed of vertical axis is high and wide tuning range.
2.Lifter with water brake is placidly and safely.
3.Oil-clutch with brake starts slabely.
4. Hydraulic control system have special valve for pipe-wrenching machine.
5. Drill rig have a long cycle for hole-work easily.
6. vertical-axis path have big diameter for different drill orders.
7. Proper weight is easy to disassemble and transport.
| 鉆井深度/Drillig deep | 1500-2000 | |
| 機下鉆桿直徑/Rod diameter | f50 f60 | |
| 立軸通徑/Path | f96 | |
| 立軸轉速/Speed | 正轉Forward : 80.175.225.260.360.490.730.1000 | |
| 反轉Reverse : 60,170 | ||
| 給進油缸上頂力/Input cylinder rising | 200 | |
| 給進油缸給頂力/Input cylinder pressure | 150 | |
| 給進油缸形程/Input cylinder cycle | 600 | |
| 給進油缸缸徑/Input cylinder diameter | f125 | |
| 卷揚單繩最大提升力.'Max.liHmg windi capacity I single rope) | 60 | |
| 卷揚提升速度/Max.winch speed (single rope ) | 0.66,1.44,1.85,2.13,2.96,4 | |
| 卷筒直徑/Roll diameter | 300 | |
| 鋼絲繩直徑Steel ropediameter | 20 | |
| 容繩量/Rope longth | 140 | |
| 移車油缸行程/Moving cylinder cycle | 550 | |
| 移動電動 WMotor | 丫250M-4電動車 55kW | |
| 動力柴油WDiesel engine | 4135AG 柴油機 100HP | |
| 齒輪油泵/Gear pump | 8Mpa 45L/min | |
| 主機重量/weight | 3800(不含動力)Weight engine | |
| 外形尺寸/Dimension (L*W*H ) | 3450x1500x2250 | |
